Tested with the meter which supports pulse output (S0) and 2N SmartCOM PRO ETH with firmware 1.13.x

• S0 pulse inputs (You can increase the S0 bus resistance against interference if necessary by connecting PullUp voltage from the power supply or an internal 3V6 supply)

Disconnect the 2N SmartCom PRO from the power supply before opening the cover. Be careful while handling the jumpers to avoid damaging the device!

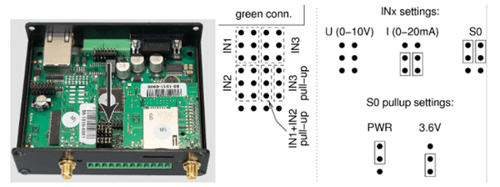

Make sure that the 2N® SmartCOM PRO ETH jumpers are set as shown in figure

• pulse counting on S0 inputs

at^scpulse1="start"                                              - enable pulse counting on input 1.

at^scams="ENABLE",1                                              - enable AMS functionality.

AT^SCAMS="DEV_ADD",128,"AIN_DIN","1/PULSE/ABS","5M"              - absolute value of pulses on input 1 every 5 minutes

at^scpulse2="start"                                              - enable pulse counting on input 2.

AT^SCAMS="DEV_ADD",128,"AIN_DIN","2/PULSE/REL","5M"              - relative (difference between two readouts) value of pulses on input 2 every 5 minutes

Possible time intervals:                                         -  "1M", "2M", "3M", "4M", "5M", "6M", "10M", "12M", "15M", "20M", "30M", "1H", "2H", "3H", "4H", "6H", "8H", "12H", "1D"

at^scams?                                                        - Show added devices

^SCAMS: 1> 128,"AIN_DIN","1/PULSE/ABS","5M"

^SCAMS: 2> 128,"AIN_DIN","2/PULSE/REL","5M"

AT^SCAMS="DEV_REMOVE",1                                          - Remove device from defined position

• results

at^scdata="get_oldest",50
 ^SCDATA: "AMS",1461340261,12091,"AIN_DIN",1,0,"","131"            - results from port 1
 ^SCDATA: "AMS",1461340381,12093,"AIN_DIN",1,0,"","228"            - results from port 1
 ^SCDATA: "AMS",1461340441,12094,"AIN_DIN",1,0,"","234"            - results from port 1
 ^SCDATA: "AMS",1461340681,12098,"AIN_DIN",2,0,"","21"             - results from port 2
