2N PICard Commander

Manage secure cards using our user-friendly 2N PICard Commander application. This software is designed for both facility managers and system integrators and allows them to create unique cryptographic key sets for each site. These keysets are then used to encrypt access credentials on MIFARE® DESFire® EV2 and EV3 cards via a 2N USB reader.

Contact Our Specialists

Multi-level security
Capability without complexity
Flexibility

Next (2)

2N PiCard Commander License

02722-001

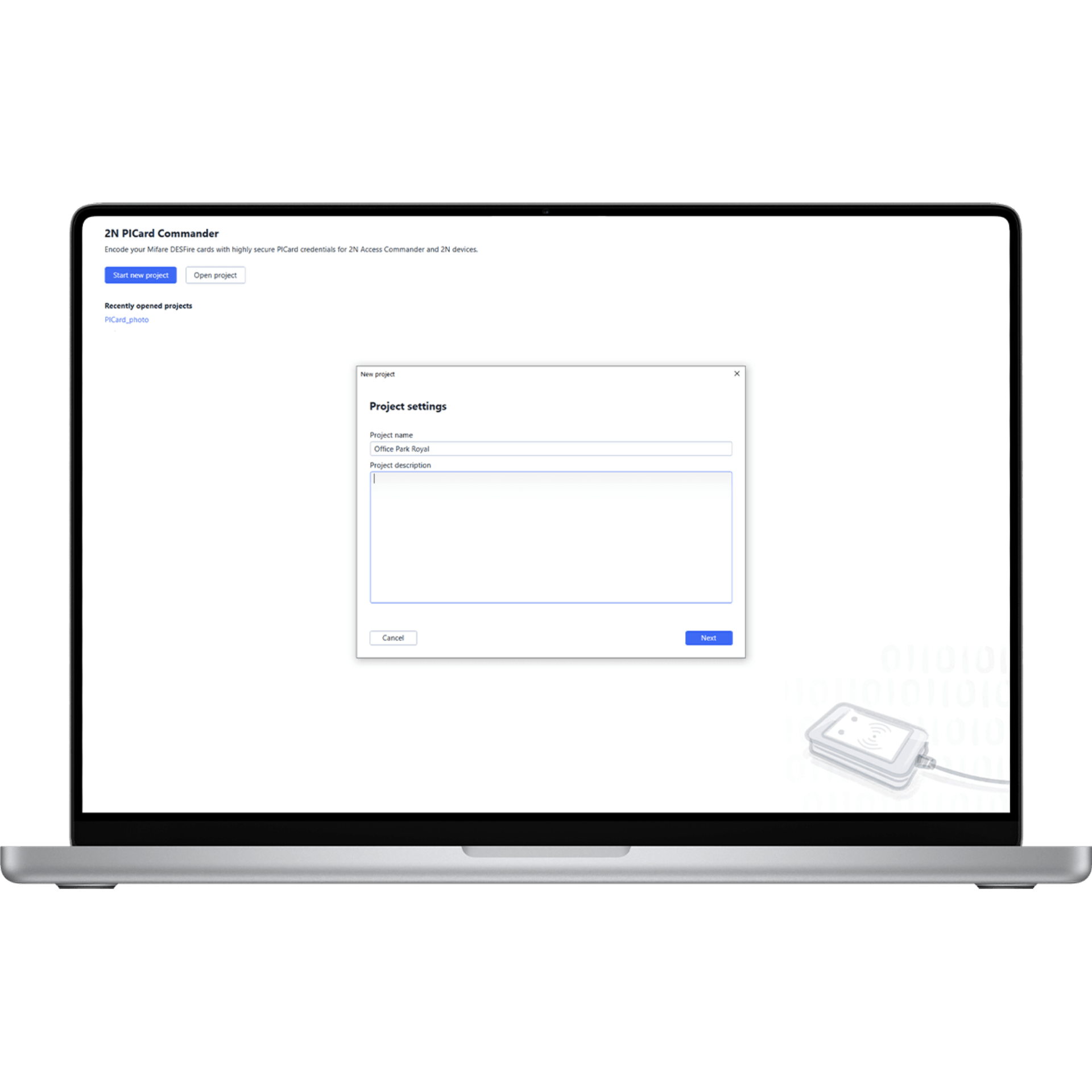

Desktop version of 2N PICard Commander interface for creating the new project

Technical specifications

General

Ordering number :

93179601 - one-time license per connected external USB reader

Operating system:

MS Windows 10 or newer

Security standards and mechanisms:

MIFARE DESFire EV2 Secure messaging, AES-128 encryption, ECDSA digital signature

Minimum supported FW & SW versions:

2N Access Commander 2.4, 2N devices with 2N OS 2.37
Compatible RFID cards and USB readers

RFID cards and keyfobs:

MIFARE® DESFire® EV2/EV3, 11202601 … 2N RFID card, 11202602 … 2N RFID keyfob, Note: If an existing card (i.e. a card that is already being used by users in a facility) is supposed to be used with 2N PICard Commander, a PICC master key of the respective card must be known. The card must be also set in a way that it requires the PICC master key to be entered to write a Picard application on it.

Minimum free card capacity:

512B

External USB readers:

9137421E … External RFID Card Reader 125kHz + 13.56MHz with NFC (USB), 9137424E … External Secured RFID Card Reader 125kHz + 13.56MHz with NFC (USB)
Compatible 2N devices

2N IP Force readers:

9151031 2N IP Force - RFID 13,56 MHz, NFC, 9151031S 2N IP Force - secured RFID 13,56 MHz, NFC

2N IP Style:

9157101 2N IP Style main unit, 9157101-S 2N IP Style main unit, secured

2N IP Verso modules:

91550946 (-S) 2N IP Verso – Touch keypad & (secured) RFID, 91550945 (-S) 2N IP Verso – Bluetooth & (secured) RFID, 9155042 2N IP Verso – RFID 13,56 MHz, 9155086 2N IP Verso - secured RFID 13,56 MHz, NFC

2N Access Unit 2.0:

9160347 (-S) 2N Access Unit 2.0 – Touch keypad, Bluetooth & (secured) RFID, 9160346 (-S) 2N Access Unit 2.0 – Touch keypad & (secured) RFID, 9160345 (-S) 2N Access Unit 2.0 – Bluetooth & (secured) RFID, 9160342 (-S) 2N Access Unit 2.0 – RFID (secured) 13,56 MHz, NFC, 9160344 (-S) 2N Access Unit 2.0 RFID - 125 kHz, (secured) 13,56 MHz, NFC

2N Access Unit M:

9161121 2N Access Unit M 13,56 MHz, NFC, 9161141 2N Access Unit M 125 kHz, 13,56 MHz, NFC, 9161151 2N Access Unit M Bluetooth & RFID - 125 kHz, 13,56 MHz, NFC, 9161161 2N Access Unit M Touch keypad & RFID - 125 kHz, 13,56 MHz, NFC
