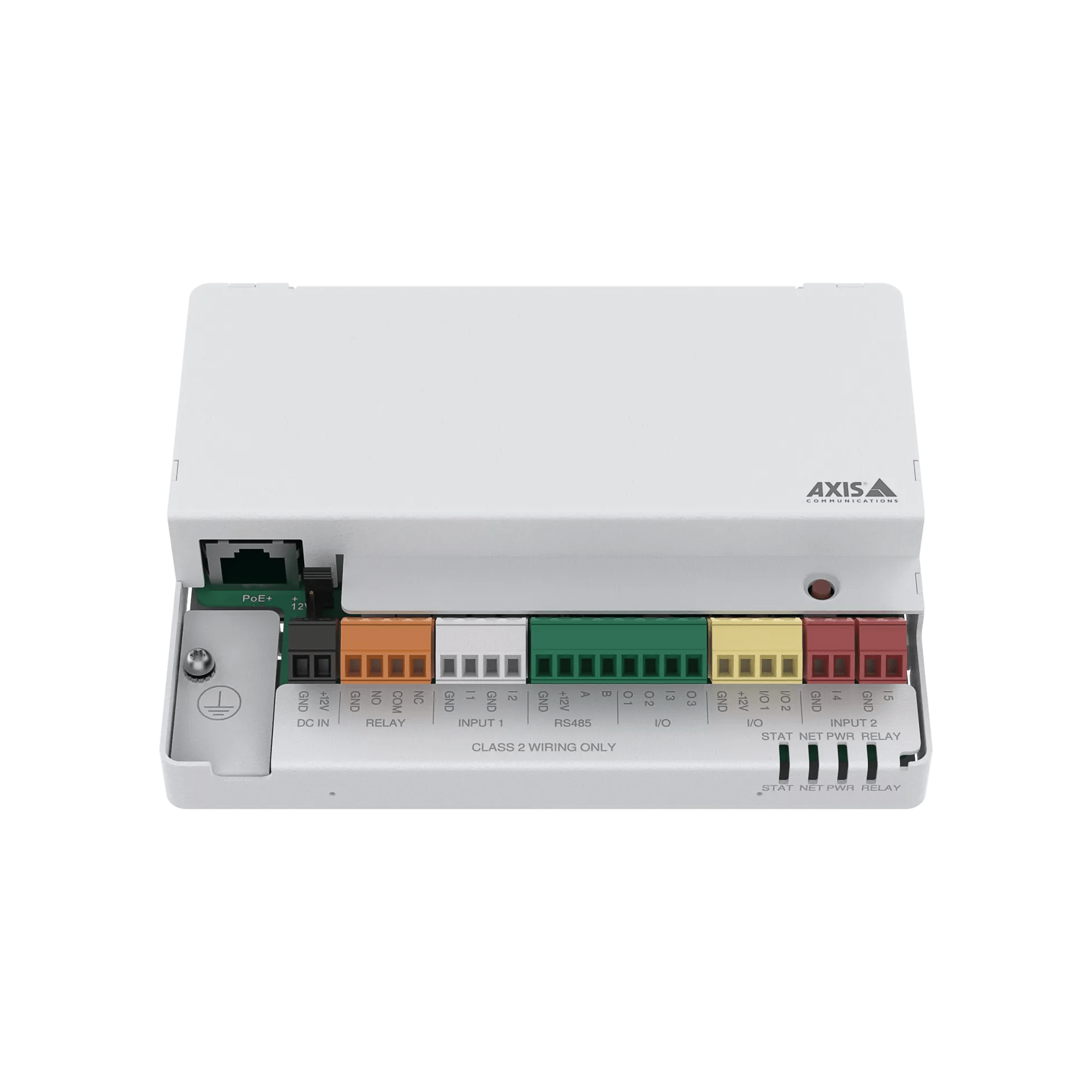

AXIS A9210 Network I/O Relay Module

Order number: 1120303

Network I/O and relay module is designed to extend system functionality in IP-based security and access control installations. It is based on Axis open platforms (VAPIX® and ACAP) and in the 2N portfolio, it is used as part of lift access control solutions (supported from 2N OS 3.3).

AXIS A9210 provides 10 I/O ports (including 2 configurable I/Os, 5 supervised inputs, and 3 outputs) and one form C relay (wet or dry). It is powered via PoE and enables integration of signals from devices such as intercoms, cameras, alarm buttons, and environmental sensors.

The module supports scalable expansion using multi-drop technology. A single AXIS A9210 can connect up to 16 AXIS A9910 expansion modules, allowing up to 128 I/Os and 64 relays.

For complete technical details and full product information, please visit the AXIS website.

Technical specifications

Power Supply

Power:

12 V DC, max 36 W

PoE:

IEEE802.3at (PoE+, Type 2 Class 4)
Interfaces

Configurable I/O:

2x configurable inputs or outputs

Digital input:

0 to max 30 V DC

Digital output:

Open drain, 0 to max 30 V DC, max 100mA

Power out I/O:

1x 12 V DC output, max 50 mA

Inputs:

5x input, 0 to max 30 V DC

Outputs:

3x output, open drain, max 30 V, 100 mA each

Relays:

1x form C relay, NO/NC, max 2 A, max 30 V DC

Power out relay:

12/24 V DC, max 24 W

RS485:

1x port, half-duplex, Modbus

Power out RS485:

1x 12 V DC output, default 200 mA

Network:

Shielded RJ45 10BASE-T/100BASE-TX/ 1000BASE-T PoE
Mechanical Properties

Operating temperature:

-40 °C to 55 °C (-40 °F to 131 °F)

UL 294:

0 °C to 55 °C (32 °F to 131 °F)

Humidity:

10–85% RH (non-condensing)

Storage temperature:

-40 °C to 70 °C (-40 °F to 158 °F)

Dimensions:

137,5 x 102,8 x 31,3 mm (5.41 x 4.05 x 1.23 inch)

Weight:

466 g (1 lb)
Network

Security:

IEEE 802.1X (EAP-TLS) 4 4 v1.2/v1.3 , IEEE 802.1AR, HTTPS/HSTS , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering
